From brake signal to pressure.
An EOH-compatible brake controller signals the actuator, which generates hydraulic pressure for the trailer’s disc brakes.
KRAKEN SYSTEM COMPONENT

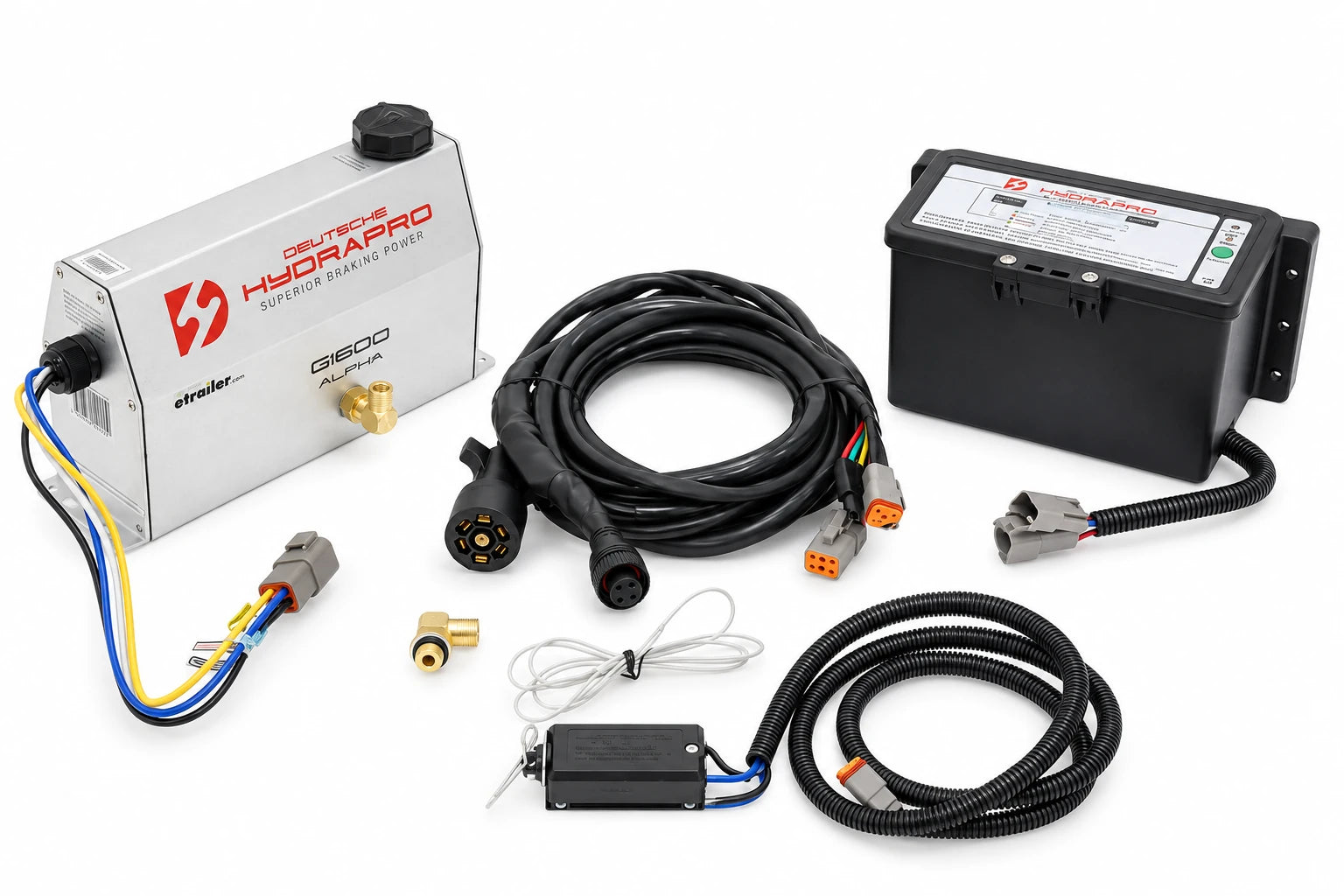

Hydrapro electric-over-hydraulic system
Explore the Alpha G-1600 EOH system and how it connects alongside Kraken lighting.
$1,048.99
Contact Kraken to confirm shipping and place your order.
Ask about this productA separate emergency trigger.
The included battery and pull-pin switch provide breakaway activation if the trailer separates. Installation and testing follow the manufacturer’s instructions.
Connect the lighting branch.

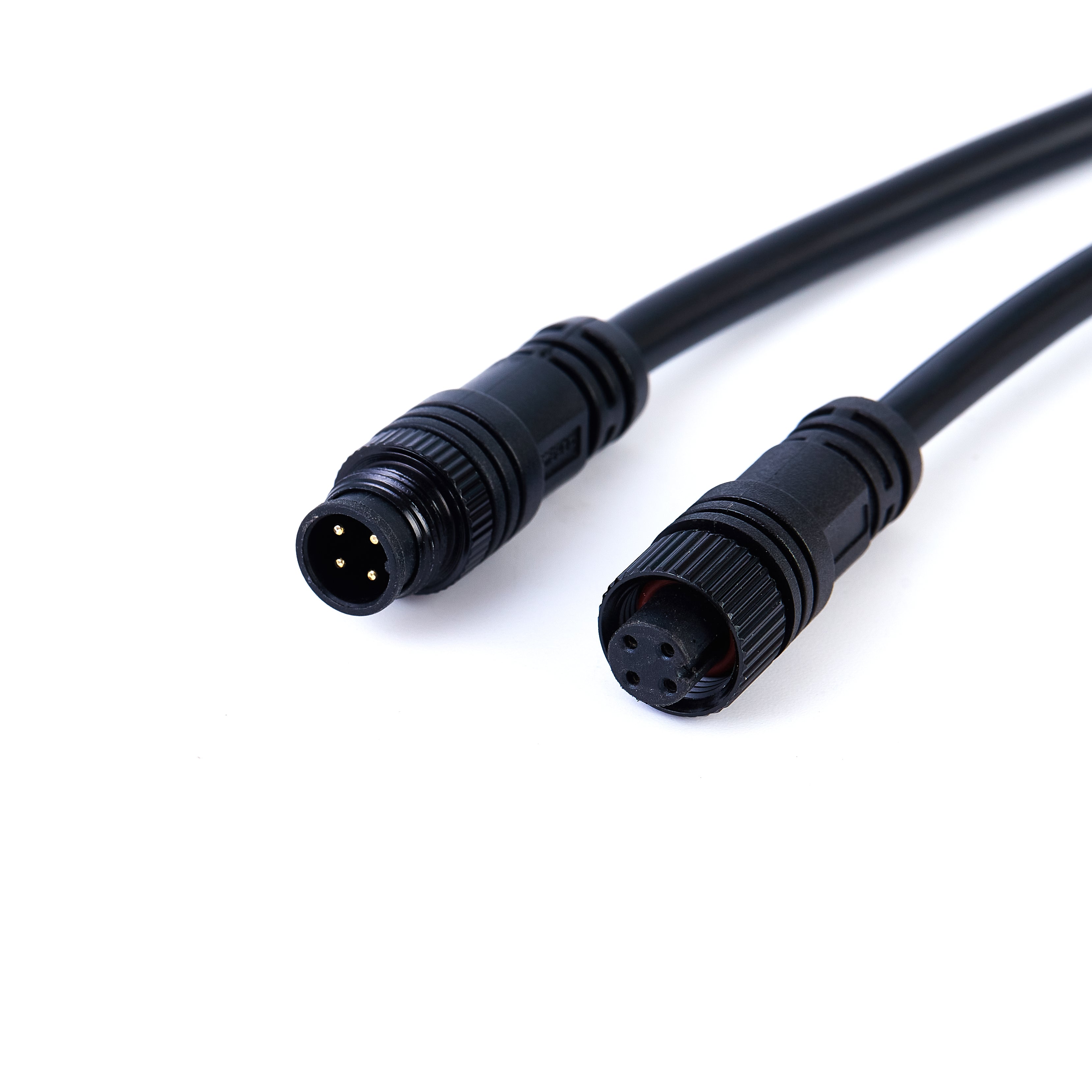

The Kraken version replaces the flat-five lighting outlet with Kraken’s female four-pin M12. The round vehicle plug and dedicated brake connections remain.
THE KRAKEN INTERFACE
ROUND AT THE TRUCK.
KRAKEN AT THE LIGHTS.
The seven-way vehicle connection brings the trailer’s circuits into the system. A separate lighting branch connects to the Kraken harness through the female four-pin M12 outlet.
The actuator keeps its dedicated power, brake-control and breakaway wiring. Its pump current does not travel through the four-pin lighting connector.
Match the mating connector, circuit assignment and harness layout before choosing a configuration. An M12 connector’s shape alone does not establish electrical compatibility.
Vehicle → M12 outlet → Kraken lights
The lighting branch serves the matched Kraken lighting harness. Confirm tail, turn, stop and ground assignments before connecting.
Controller + power → actuator → disc brakes
The actuator uses its dedicated supply and control circuits, hydraulic line connection and breakaway system. This overview is not a wiring pinout.
KNOW YOUR SETUP
THE SYSTEM, IN DETAIL.
- Actuator
- Alpha G-1600
- Brake type
- Hydraulic disc brakes
- Trailer application
- Single, tandem or triple axle
- Maximum pressure
- 1,600 psi
- Supply / battery
- 12V DC / 10 Ah
- Hydraulic connection
- 3/16-inch inverted flare
- Actuator dimensions
- 10 × 3⅝ × 6 inches
- Manufacturer kit model
- DH-HARNESS-AG1600
Included in the referenced system
- Actuator with reservoir
- Prewired harness and junction box
- Breakaway battery and box
- Breakaway switch
Plan for the rest of the installation
The brake controller, disc-brake hardware, hydraulic plumbing and Kraken lighting kit are separate. Confirm brake-controller compatibility, electrical supply, mounting and routing for your trailer.
The M12 lighting branch must match the lighting harness circuit and connector configuration. Keep the actuator and junction box above the launch waterline and follow the equipment’s installation instructions.
