TRIPLE AXLE KIT Flat 4 physical routing drawing

Vehicle connection and splitter

Flat 4 lead with female 4-pin M12 connects to the splitter’s male 4-pin input. The two female 3-pin outputs feed the two sides.

M12 splitter, four-pin male to two three-pin femalesView splitter details →

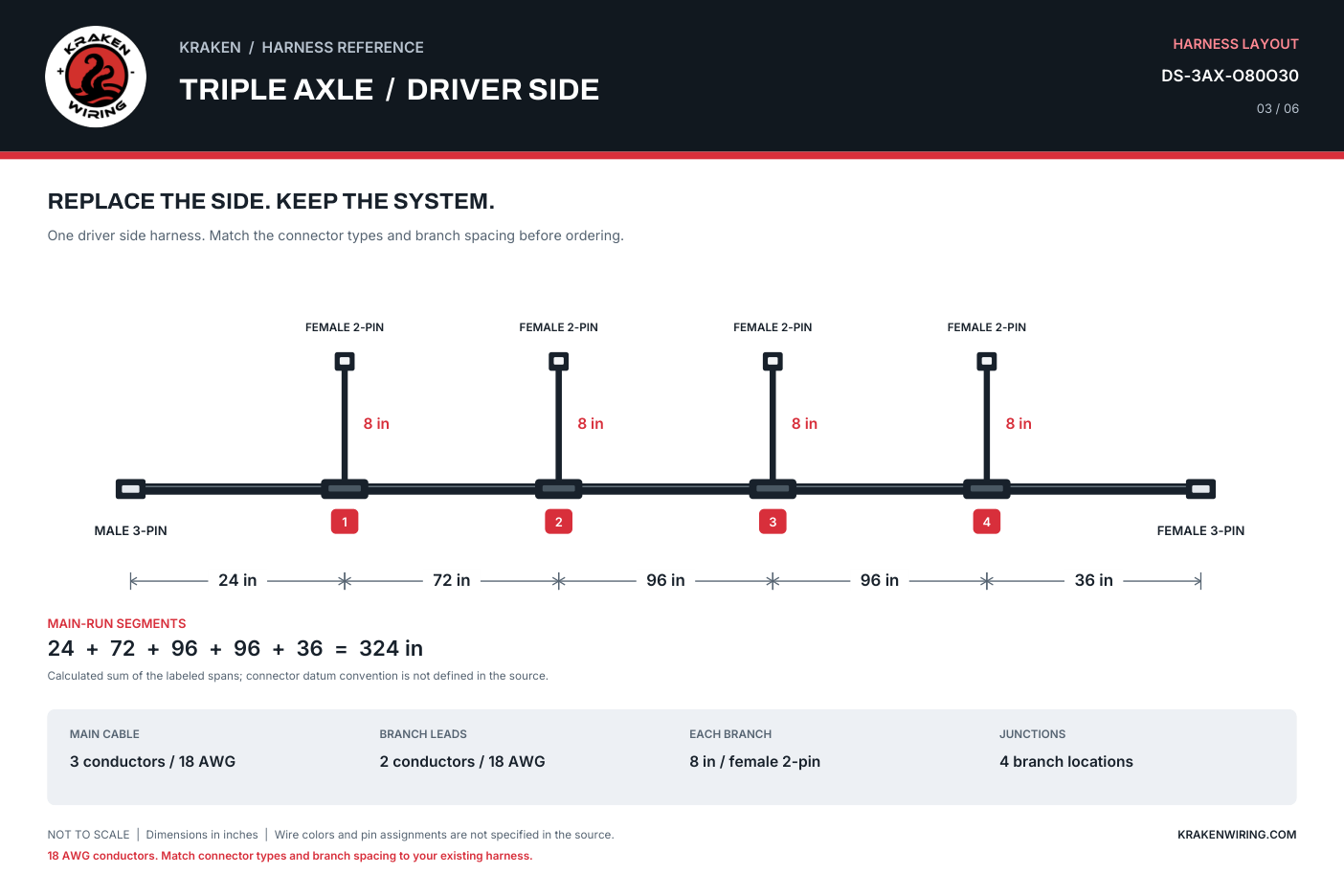

Driver side (DS)

DS-3AX-O80O30 dimensioned layout

Open printable harness drawing →

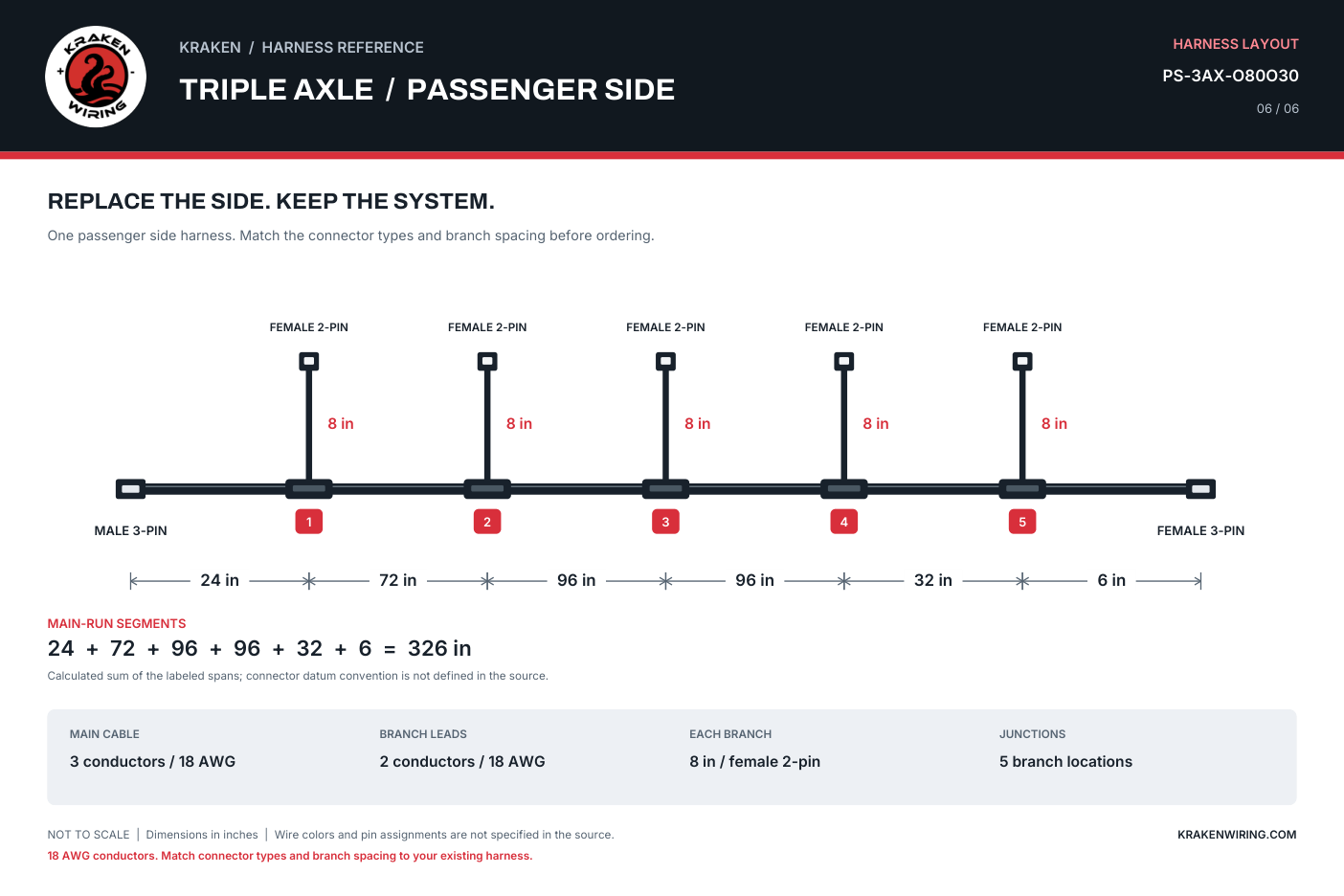

Passenger side (PS)

PS-3AX-O80O30 dimensioned layout

Open printable harness drawing →
